IDS GeoRadar Opera XR – GPR for underground utilities (200/900 MHz)

38 070 €Net price: 30 951 €

Net price: 30 951 €

Cart-based dual-frequency 200/900 MHz GPR for underground utility locating — 40–60% greater depth with EsT technology.

Ready to buy this product?

Why choose us?

Over a decade of experience
Professional training
We work throughout the EU
Professional after-sales support
We offer premium products

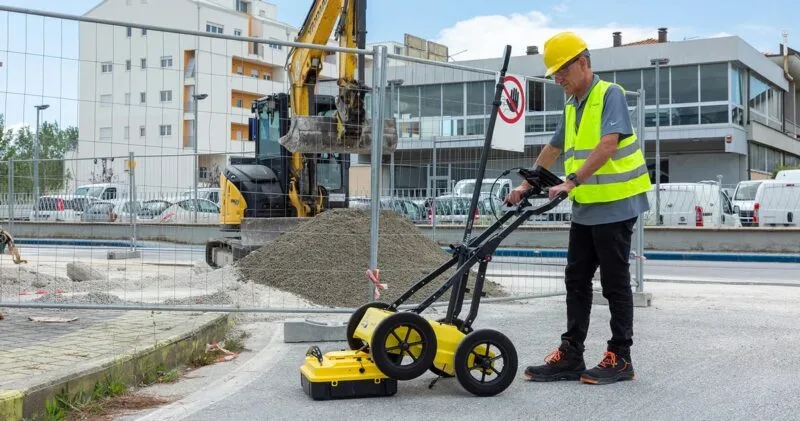

IDS GeoRadar Opera XR is a next-generation ground-penetrating radar (GPR) system for locating and mapping underground utilities. Mounted on a robust folding cart, it is designed to make underground infrastructure detection faster, deeper and more accurate than ever before.

Opera XR uses an antenna that is dual-frequency 200 MHz and 900 MHz with an inspection range of 80 MHz – 1500 MHz and patented technology EsT (Equalized scrambled Technology). This technology provides 40–60% greater penetration depth and higher resolution than conventional GPR systems. Simultaneous display of both frequencies aids interpretation: the high frequency provides near-surface detail, while the low frequency provides greater depth.

Opera XR is ideal for companies specialising in utility locating, underground utility mapping, and civil engineering and road works.

Parameter	Value
Number of channels	2
Centre frequencies	Dual 200 MHz and 900 MHz
Scope of inspections	80 MHz – 1500 MHz
Technology	EsT – Equalized Scrambled Technology (patented)
Increase in penetration depth	40-60% vs. traditional GPR
Polarisation	HH and VV configuration
Positioning	Encoder; external GPS and TPS
Power consumption	Acquisition: 16 W / Stand-by: 12 W
Operating time	4 h (1 battery) / 8 h (2 batteries, hot-swap)
Weight	20 kg
Operating temperature	-20 °C to +50 °C
Protection class	IP65
Certificates	CE, UKCA, FCC, IC
